Ventilated Disc Brake
Caliper · pads · ventilated disc
A floating-caliper brake with a ventilated disc. The walkthrough shows the braking sequence from line pressure to clamp, the parameters turn pressure into clamping force and braking torque, and assembly mode builds the brake up part by part.

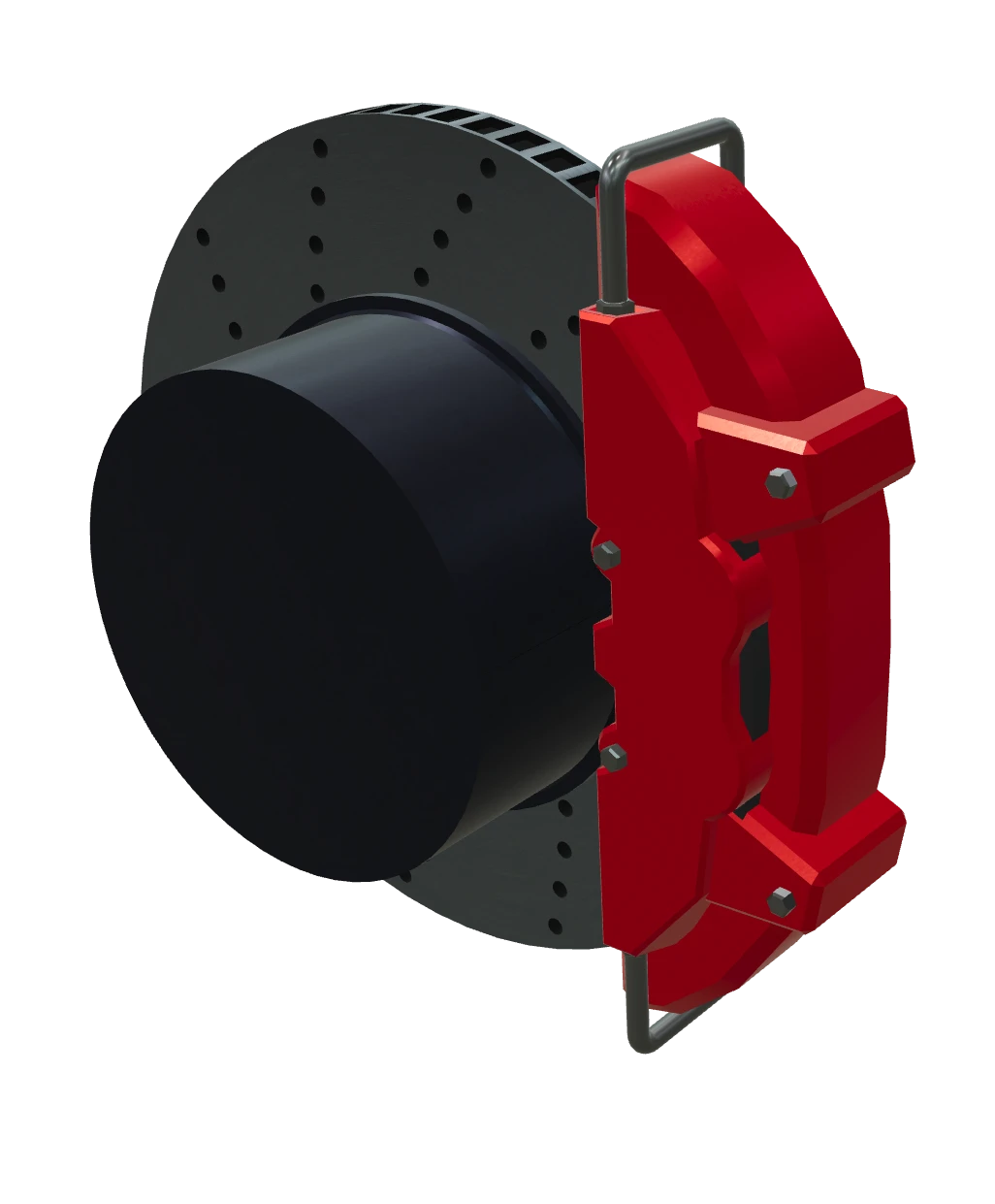

How it's built
1 Ventilated disc Friction surface with internal cooling vanes 2 Disc hat (mounting face) Mounts the disc to the hub, passes the torque 3 Brake pads Friction material pressed onto both sides 4 Brake caliper Hydraulic clamp that straddles the disc What the demo shows
- Braking sequence Pressure, piston, pads and disc in order, with the wheel slowing as the caliper clamps.
- Live speed and line pressure Read wheel speed, clamping force and braking torque as you change the inputs.
- Step-by-step assembly Assembly mode takes the brake apart and puts it back together in the right order.
- Caliper colours Switch the caliper between RAL and tactical finishes.
Technical data
| Item | Value |
|---|---|
| Type | Floating caliper · ventilated disc |
| Disc diameter | approx. 320 mm |
| Actuation | Hydraulic |
| Input | Range |
|---|---|
| Vehicle speed | 0–200 km/h |
| Brake line pressure | 0–150 bar |
| Part | Property | Value |
|---|---|---|
| Ventilated disc | Construction | Twin plates + internal vanes |
| Function | Friction surface · cooling | |
| Brake pads | Quantity | One per side, two in total |
| Wear | Wear part, replace regularly | |
| Brake caliper | Actuation | Hydraulic piston |
| Mounting | Fixed to the steering knuckle, does not rotate | |
| Disc hat (mounting face) | Function | Locating · torque transfer |
Live read-outs: Wheel speed · Clamping force · Braking torque
Demonstration values for this model, not the data of a specific manufacturer's product.
Want this for your product?
Send us a CAD export or a few photos of one product. We'll show you what its page and live 3D could look like.
Other demo machines

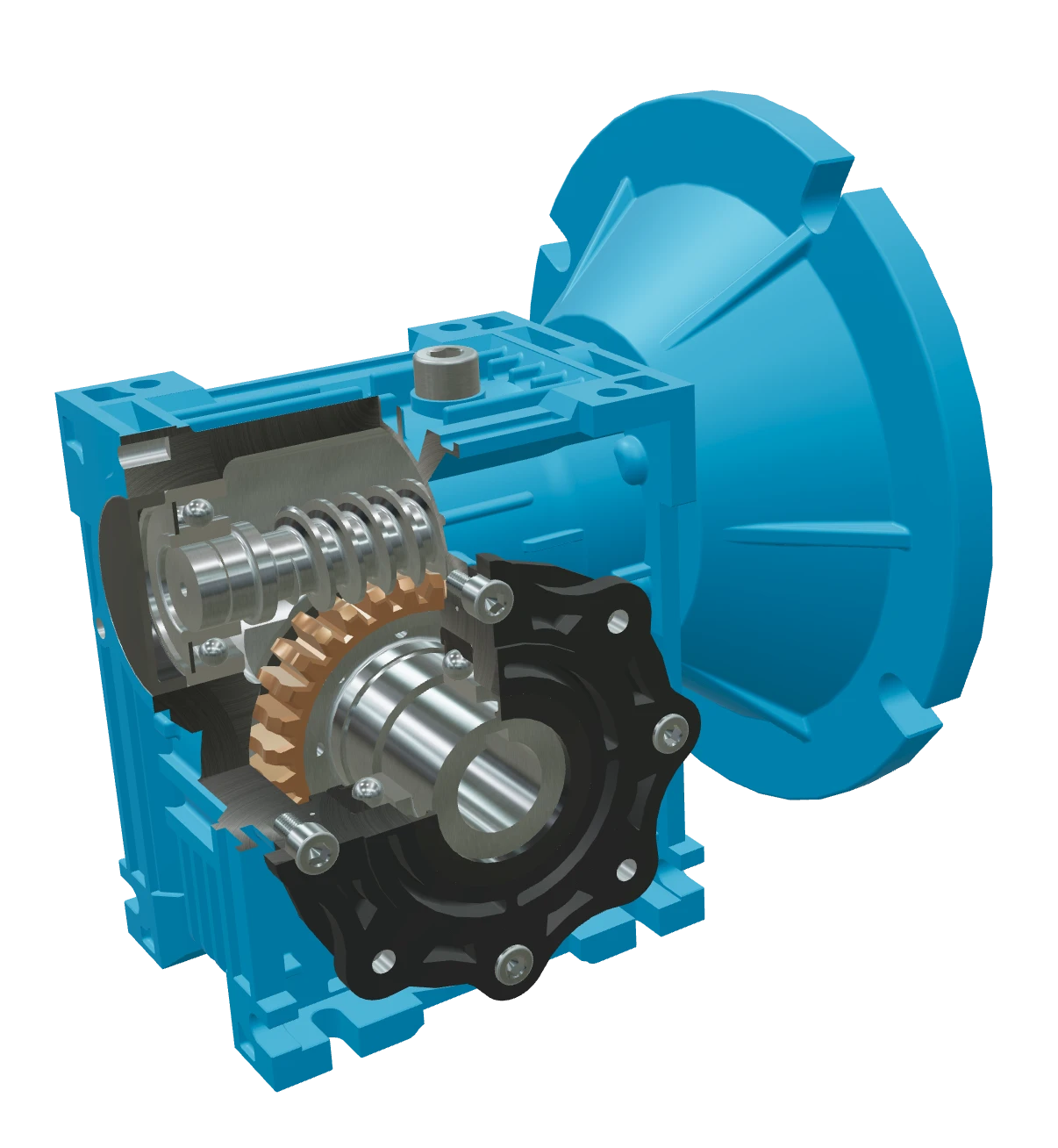

Worm Gear Reducer 90° turn · high reduction ratio · self-locking

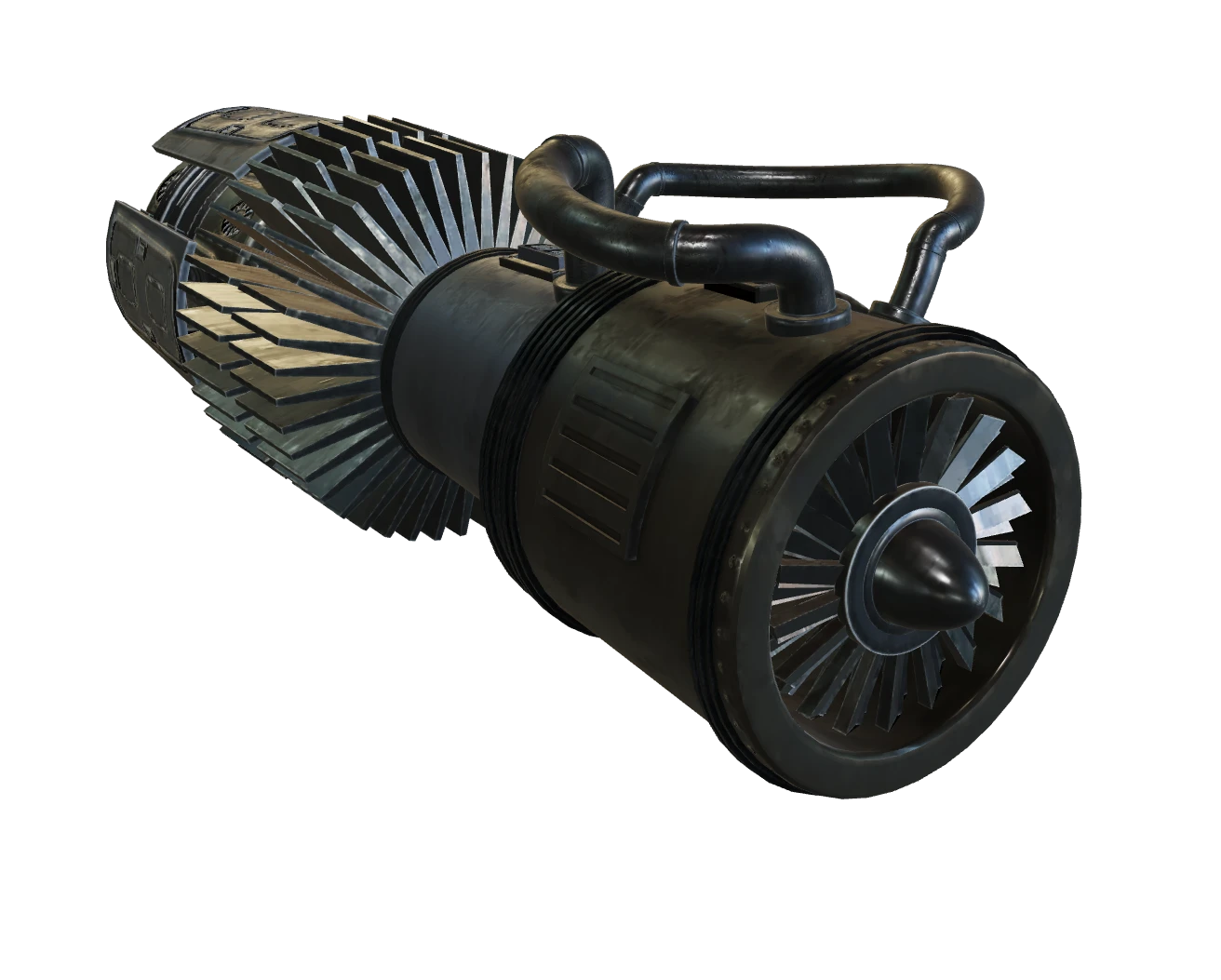

Turbofan Engine Intake → compression → combustion → exhaust

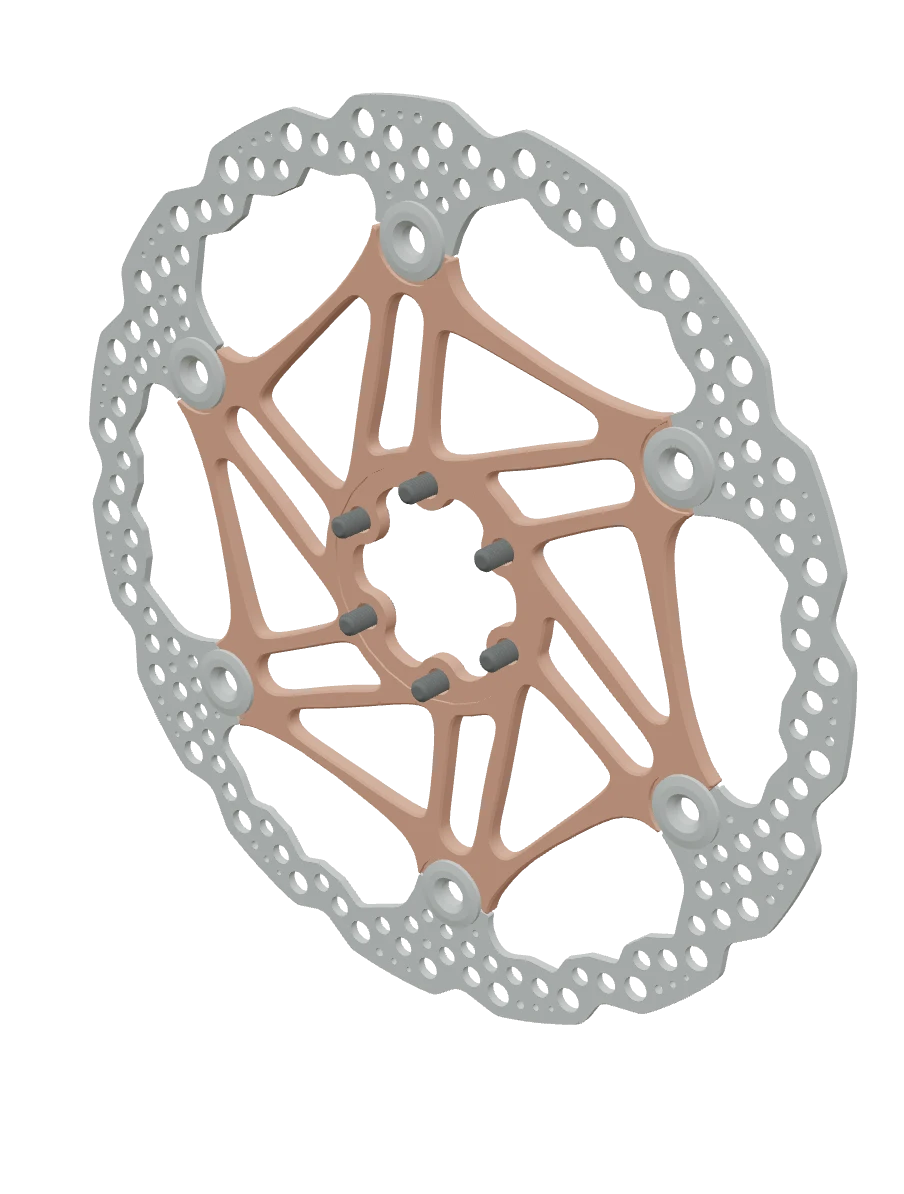

203 mm Floating Brake Rotor Aluminium carrier + steel braking track 3D model: "Car Disc Brake" by Joko_P (CC BY 4.0)
